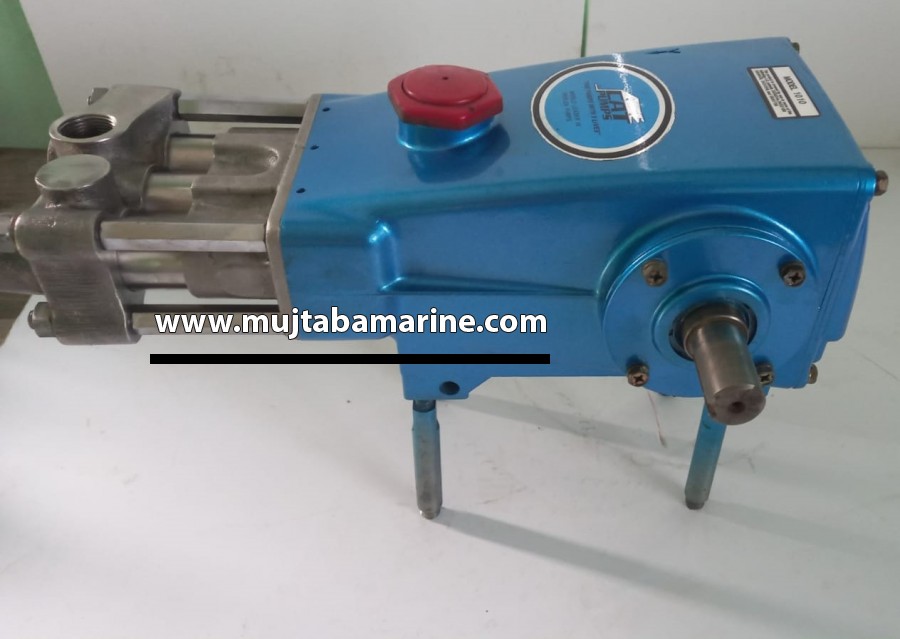

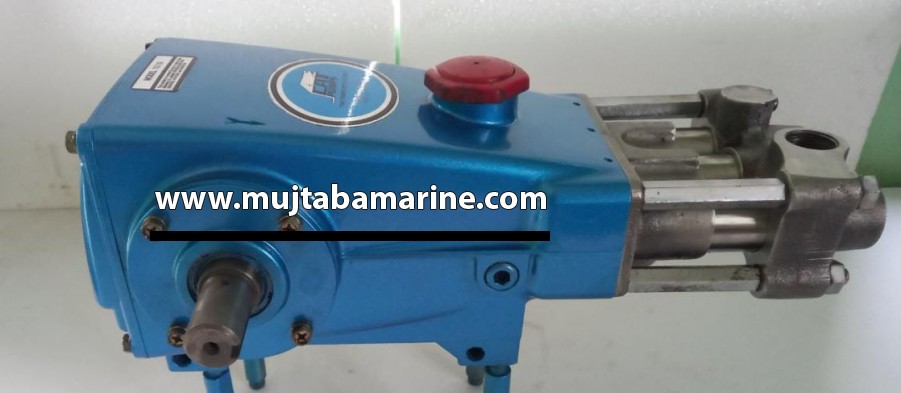

This is a triplex [three piston rods] positive displacement, reciprocating, piston pump, constructed with chrome-plated brass manifolds, 304SS valve assemblies, chrome-plated 304SS cylinders and sleeves and standard NBR [Buna-N] seals and o-rings. Its low RPM is designed for belt drive. The Uniflow design features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction.

Technical Specifications
Max Flow: 13 gpm / 49.2 lpm
Max Pressure: 700
Inlet Port Size: 1" NPT(F)
Discharge Port Size: 3/4" NPT(F)
RPM: 900
Drive Type(s): Belt
Material: Brass
