256216

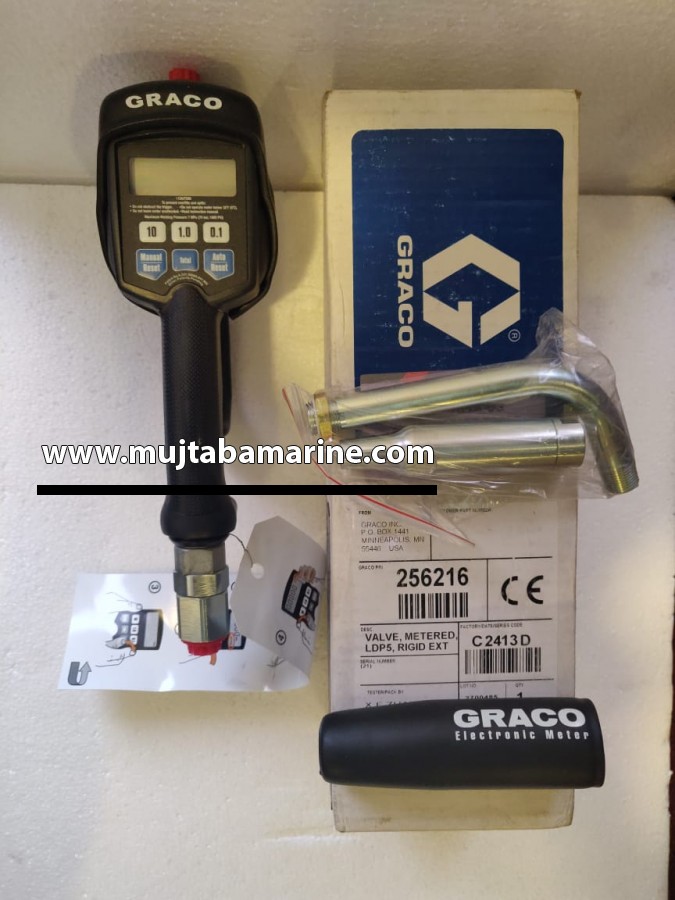

LDP5 Electronic Preset Meter - Rigid Extension - 1/2" Inlet - Trigger Guard and Swivel Cover Included - NPT


Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships.
These meters are capable of metering petroleum, synthetic based oil and antifreeze up to 5 gpm.

Features:
Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships.
These meters are capable of metering petroleum, synthetic based oil and antifreeze up to 5 gpm.

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
Easy to read LCD screen keeps dispenses precise.
Inlet 1/2 in. NPT with swivel.
Rugged meter body is impact resistant for long life.
Ergonomically-design, comfortable handle with two-finger trigger.
Preset meter automatically shuts-off flow when preset quantity has been dispensed.
5 year warranty. See manufacturers website for details.

Specifications:
Approvals     CE
Compatible Material     Oil, Antifreeze
Dispense Type     Preset
Display Type     Electronic
Extension Type     Rigid
Fluid Inlet Thread Gender     Female
Fluid Outlet Thread Gender     Female
Includes     Nozzle, Extension, Trigger Guard, Swivel Cover
Inlet Size (in)     1/2
Inlet Thread Type     NPT
Maximum Operating Temperature (°F)     120
Maximum Storage Temperature (°F)     120
Maximum Working Pressure (MPa)     6.9
Maximum Working Pressure (psi)     1000
Meter Accuracy (%)     Â±0.5
Metering Gun Weight (lb)     3
Minimum Operating Temperature (°F)     32
Nozzle Type     Automatic
Outlet Size (in)     3/8
Outlet Thread Type     NPT
Overall Height (in)     3.25
Overall Length (in)     11
Overall Width (in)     3.25
Recommended Environment     Indoor
Trigger Lock     Locking
Trigger Protection Type     Guard
Type     Electronic Metered Dispense Valve
Unit of Measure     Pint, Quart, Gallon, Liter
Valve Type     Metered
Warranty     5 years Structural Components, 2 years Electronics, 1 year Wear Parts
Wetted Material     Stainless Steel, Nitrile Rubber, Zinc, CS, LCP
