Description:

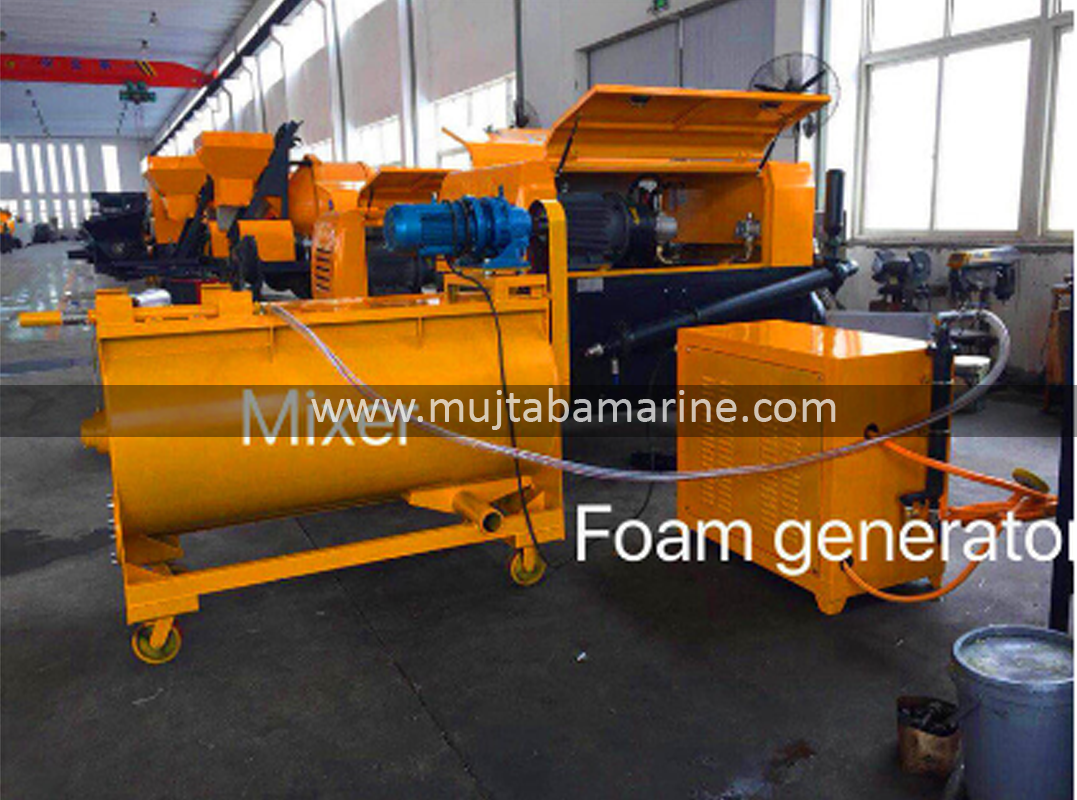

GF foaming concrete brick machine is designed for compact construct, small volume, easy to move.
Pumping, foaming and mixing system are assembled as a whole body,  very convenient to use.
This CLC foam concrete machine adopts single phase motor as power. The power is moderate, and GF5 CLC concrete machine is very convenient for family construction

Technical data:
Model-GF
Max. theoretical concrete put(m³/h)-5
Motor power(kw)-4.5
Theoretical vertical conveying height(m)-40
Theoretical level transmission distance(m)-300
Mixer tank capacity(L)-200
Filling height(mm)-880
Overall dimension(mm)-2100*1340*1390
Total weight(kg)-910

Applications:
1. Lightweight concrete machine can be used for providing insulating layer on the floor.
   It can adjust the density according the mix design from 250-1600kg/m3.
2. CLC block machine can used for roof insulation of refrigerated storage space.
   Besides, it can be used for filling tunnel and mined.
3. CLC making machine can be used for producing foam concrete panel and CLC block.
