Construction Equipments - Foam Concrete Machine

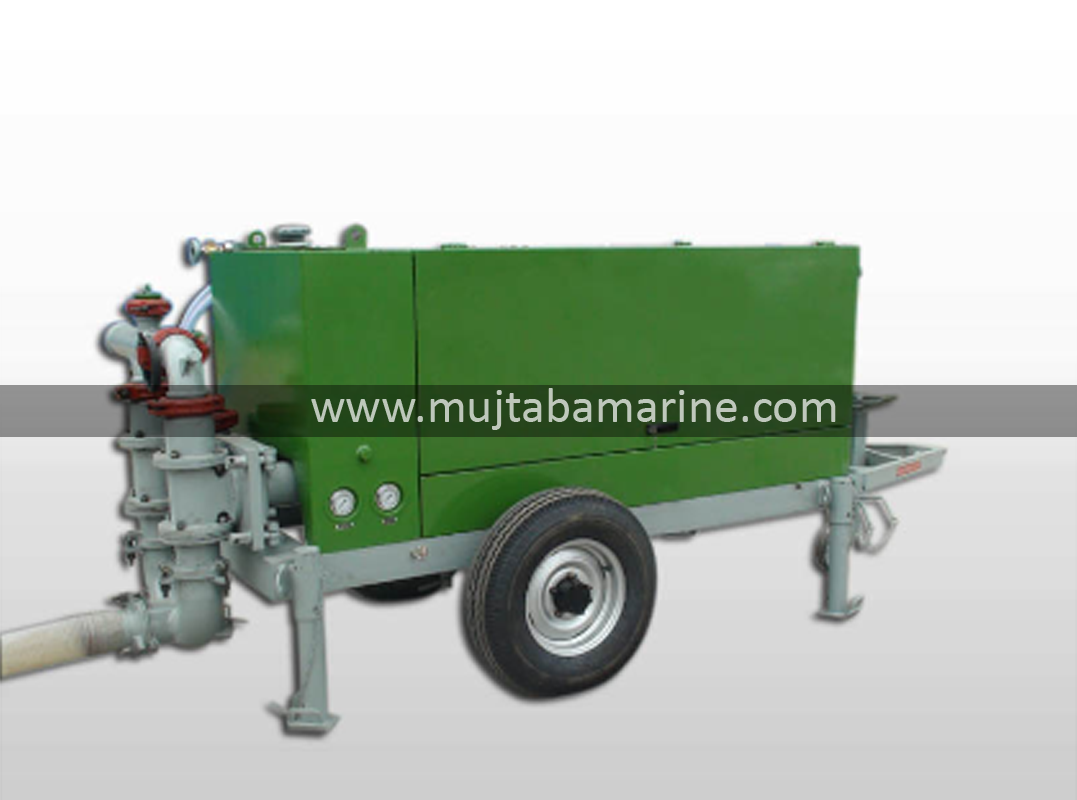

GF LIGHT WEIGHT FOAM CONCRETE UNIT

Description:
GF foaming cement machine put cement and water into a slurry mixing and then mix them in a certain proportion,
press them into transmission pipelines through hydraulic cylinder; According
to a certain proportion foam mixed with water and then mixed with compressed air by the high- pressure pump;
In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.

Technical data:
Model-GF
Max.Output-25m3/h
Max.Conveying Pressure-3MPa
Max.Horizontal Transporting Range-300m
Max. Vertical Transporting Height-120m
Acceptable Max. Aggregates size-8mm
Power-30KW
Dimension-3800x1500x1500mm
Weight-1700kg

Applications:
1. Applied for insulating layer in floor heating constructions: the surface will flow smooth naturally and is essential advanced equipment for floor heating construction;
2. Applied for roof insulation constructions: The foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30  times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer;
3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material;
4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section;
5. Applied in freezing prevention and temperature maintenance of pipeline.

Model GF
Max.Output 25m3/h
Max.Conveying Pressure 3MPa
Max.Horizontal Transporting Range 300m
Acceptable Max. Aggregates size 8mm
Power 30KW
Dimension 3800x1500x1500mm
Weight 1700kg
Max. Vertical Transporting Height 120m
