Husky 1590 Air-Operated Diaphragm Pumps

Husky 1590 Air-Operated Diaphragm Pumps
1,5 inch Positive Displacement Double Diaphragm Pump
The Husky 1590 has a 1,5 inch (38.1 mm) connection and is available in aluminum, stainless steel and polypropylene.

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Benefits of the Husky 1590 double diaphragm pumps
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
Offered in ATEX configuration.

Overview
Maximum fluid flow- 100 gpm (378.5 l/min)
Maximum Fluid Discharge- 120 psi (8,4 bars, 0,84 MPa)
Maximum size pumpable solids- 3/16 in (4.8 mm)
Fluid displacement per cycle- 0.5 g (1,9 liter)

Features:
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation

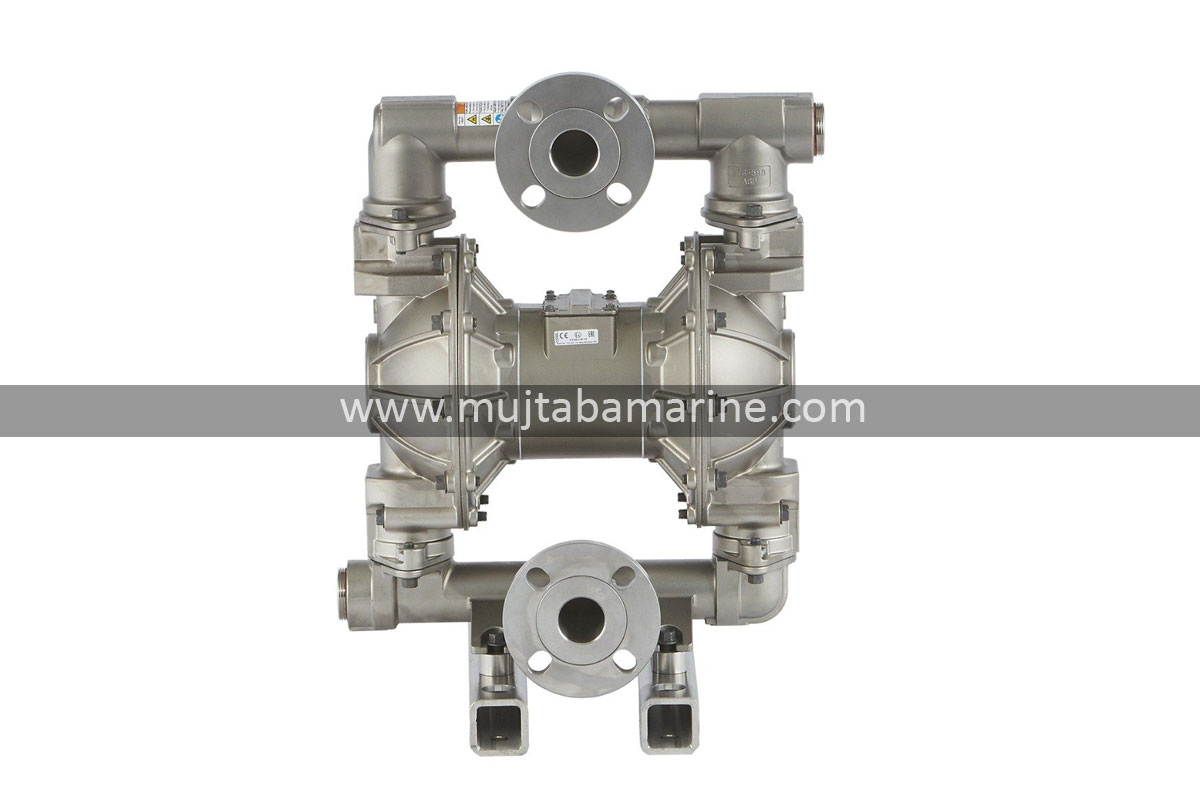

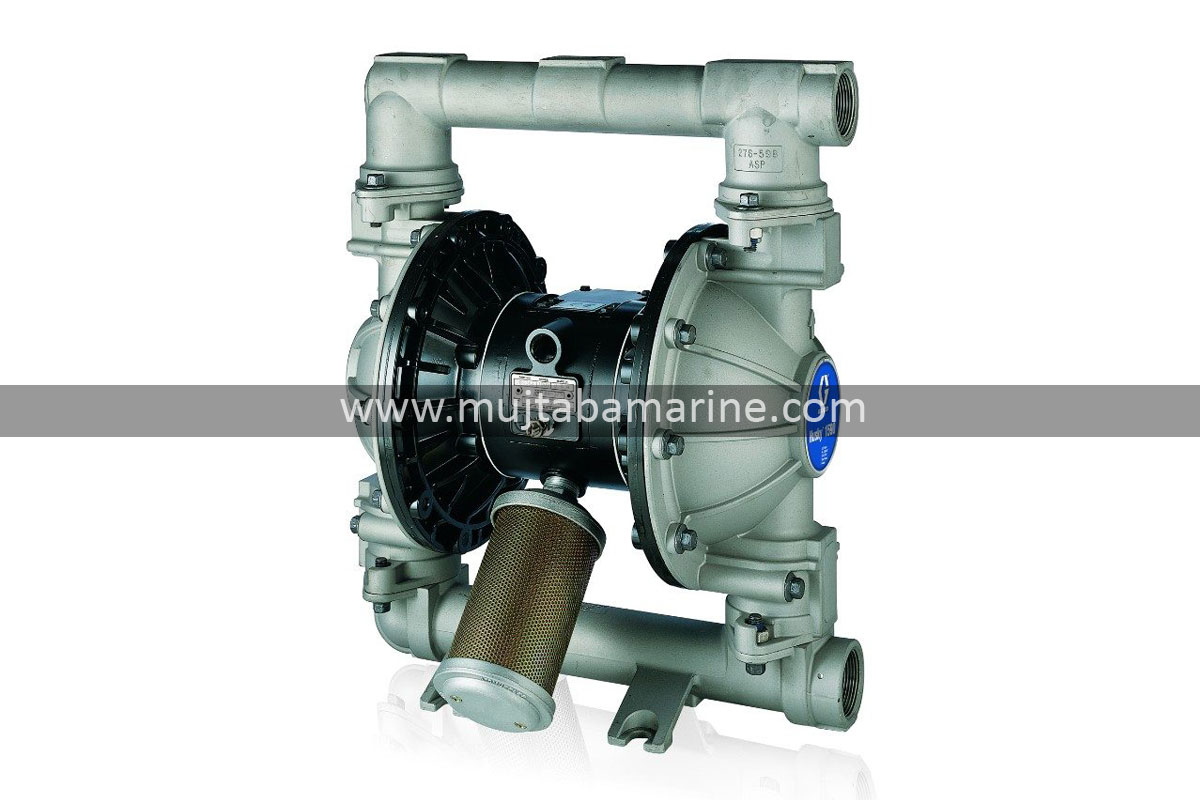

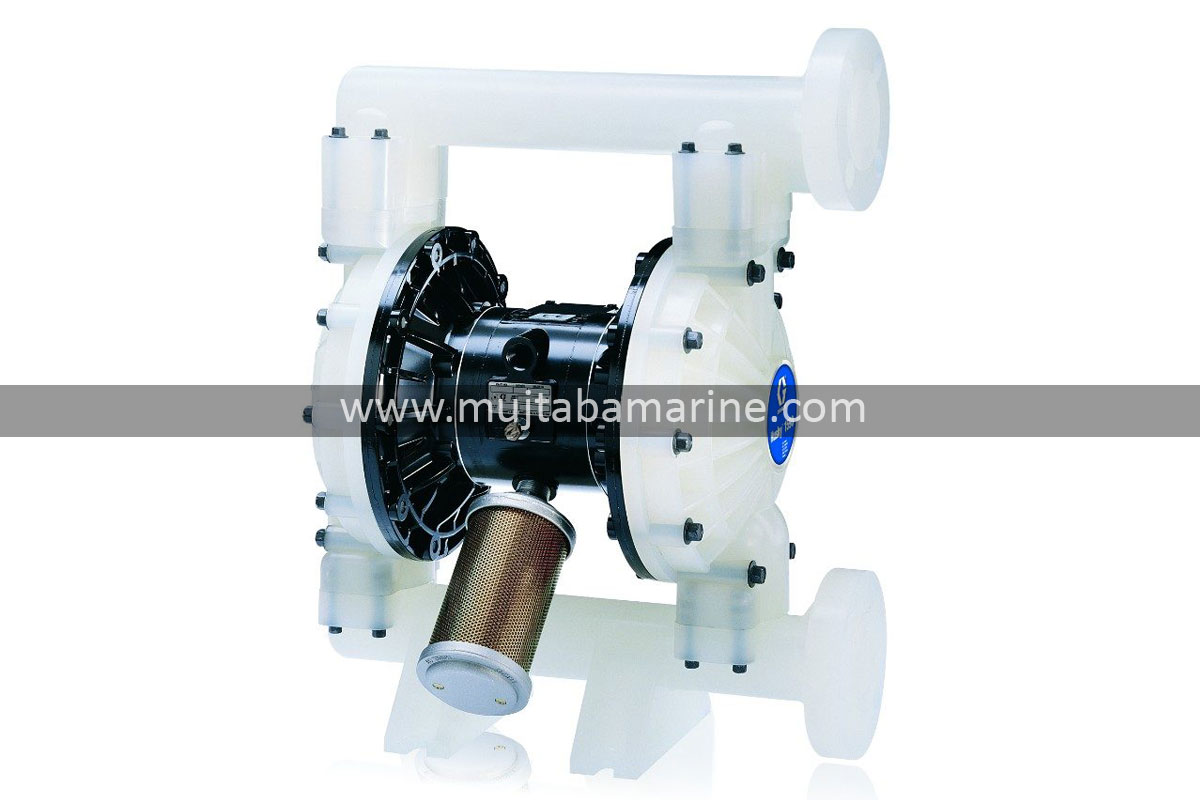

Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Material:
Antifreeze
Detergents
Motor Oil
Hydraulic Fluid
Cutting Oil
Water - Wastewater Transfer

Applications:
Paint Circulation
Chemical Transfer
Oil Transfer
Medium-Viscosity Material Transfer
Low-Viscosity Material Transfer
Pumping
Fluid Transfer

Industries:
Chemical Manufacturing
Bathware and Ceramics Manufacturing
Mining - Wastewater Transfer
Printing and Publishing - Ink Transfer
Marine
Railroads
Trucking
Waste Management
Water - Wastewater Transfer
Ink Transfer
