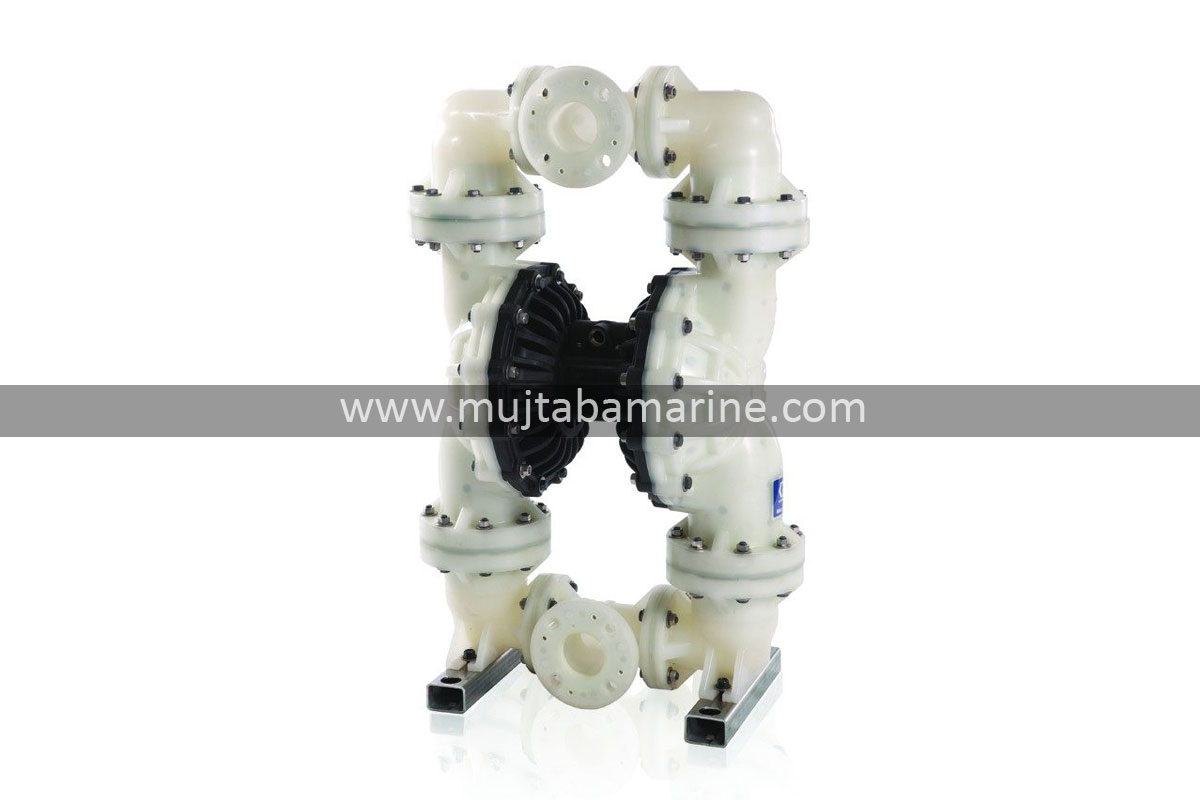

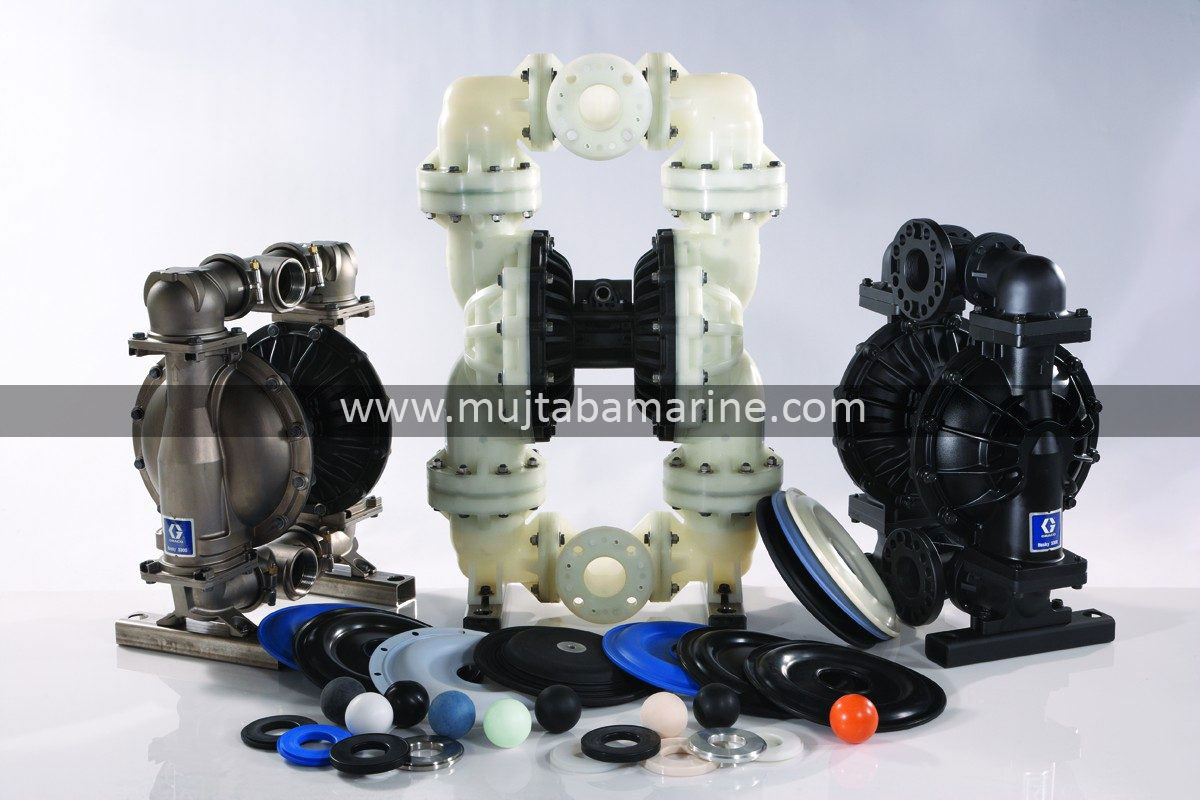

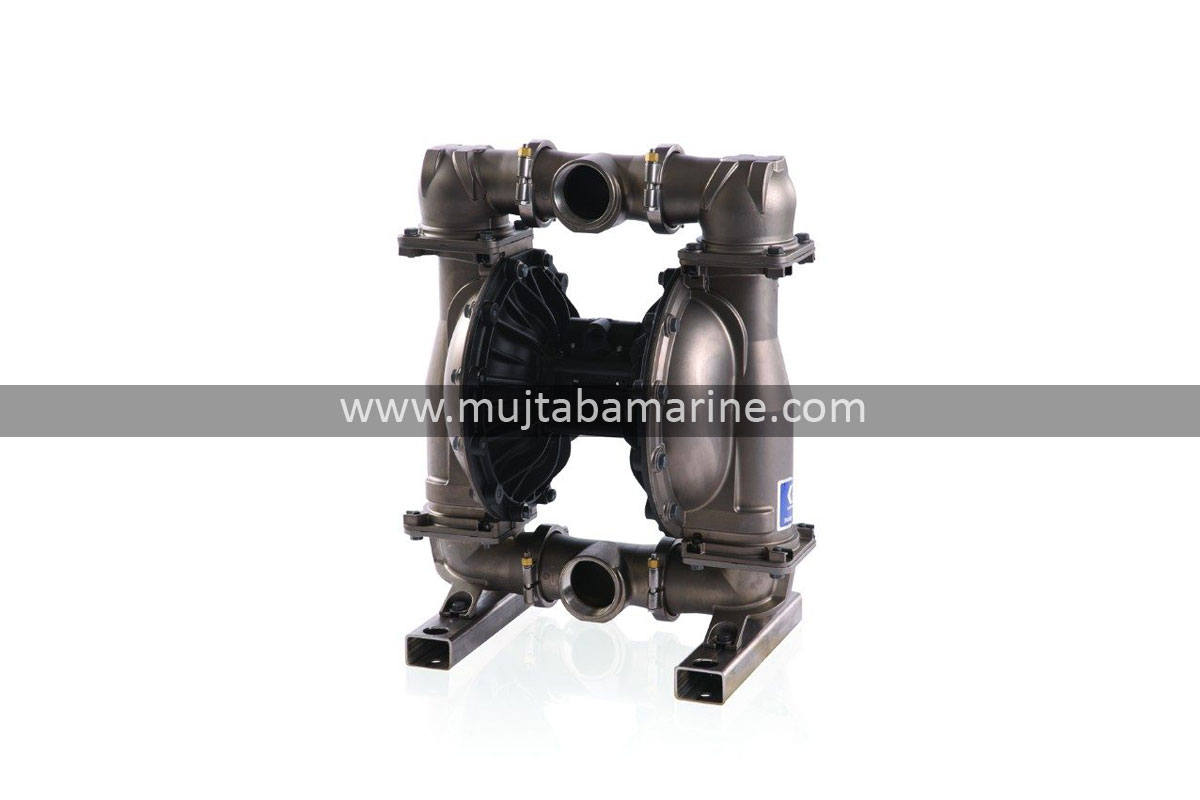

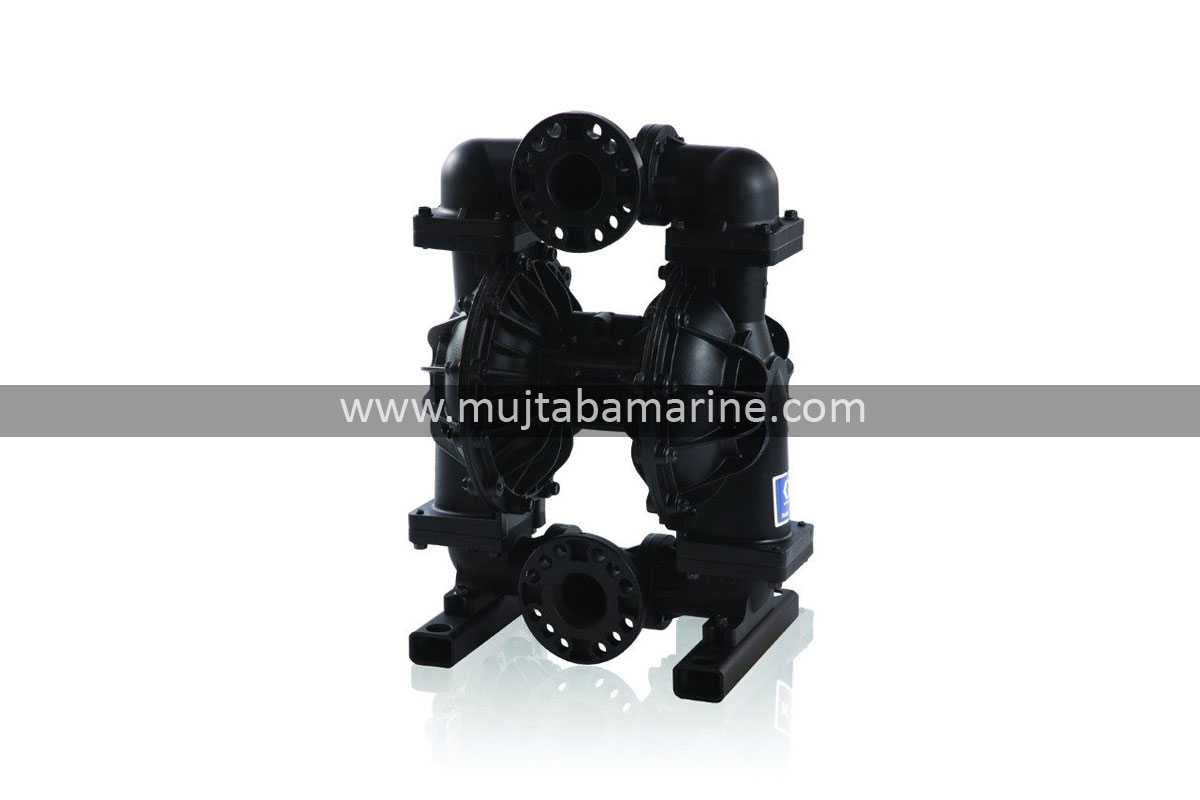

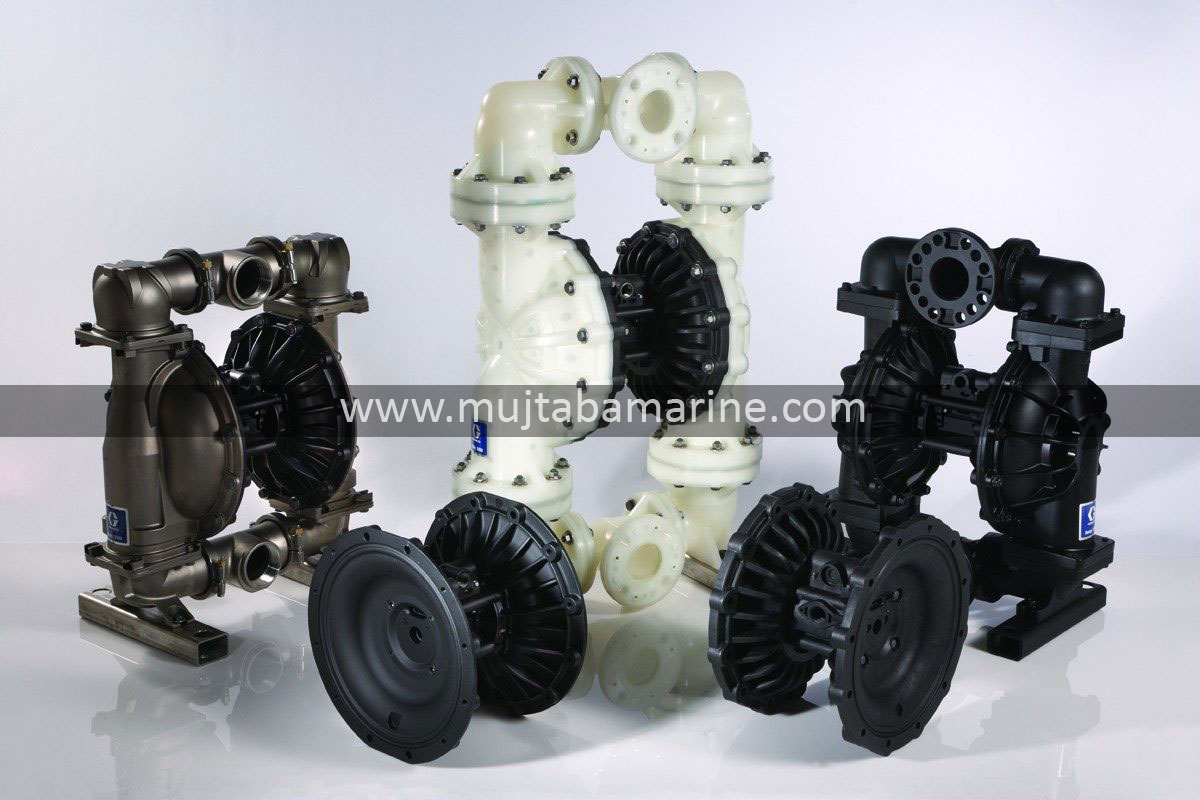

Husky 3300 Air-Operated Diaphragm Pumps
3 inch Positive Displacement Double Diaphragm Pump
The Husky 3300 has a 3 inch (76.2 mm) connection and is available in aluminum, polypropylene and stainless steel
The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
Benefits of the Husky 3300 double diaphragm pumps
Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Expanded material offering to handle endless applications
Offered in ATEX configuration.
Overview
Maximum fluid flow- 300 gpm (1135 lpm)
Maximum Fluid Discharge- 100 psi (7 bars, 0.7 MPa)
Maximum size pumpable solids- ½ in (13 mm)
Fluid displacement per cycle- 2.9 g (11 liters)
Features:
Expanded material offering to handle numerous applications
Flow rates up to 300 gpm (1,135 lpm)
Modular stall-resistant air valve design
Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
Heavy-duty construction
Faster change over with spring loaded pilot valves
Material:
Antifreeze
Detergents
Motor Oil
Hydraulic Fluid
Cutting Oil
Water - Wastewater Transfer
Applications:
Lubrication
Paint Circulation
Chemical Transfer
Oil Transfer
Medium-Viscosity Material Transfer
Low-Viscosity Material Transfer
Pumping
Fluid Transfer
Industries:
Chemical Manufacturing
Bathware and Ceramics Manufacturing
Mining - Wastewater Transfer
Printing and Publishing - Ink Transfer
Marine
Railroads
Trucking
Waste Management
Heavy Equipment Manufacturing
Water - Wastewater Transfer
Ink Transfer
