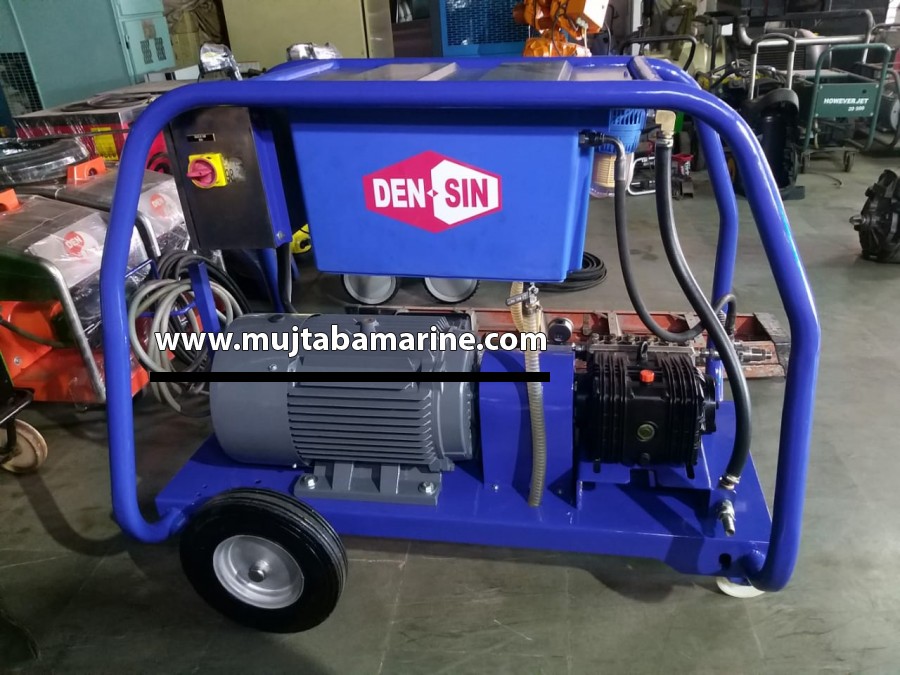

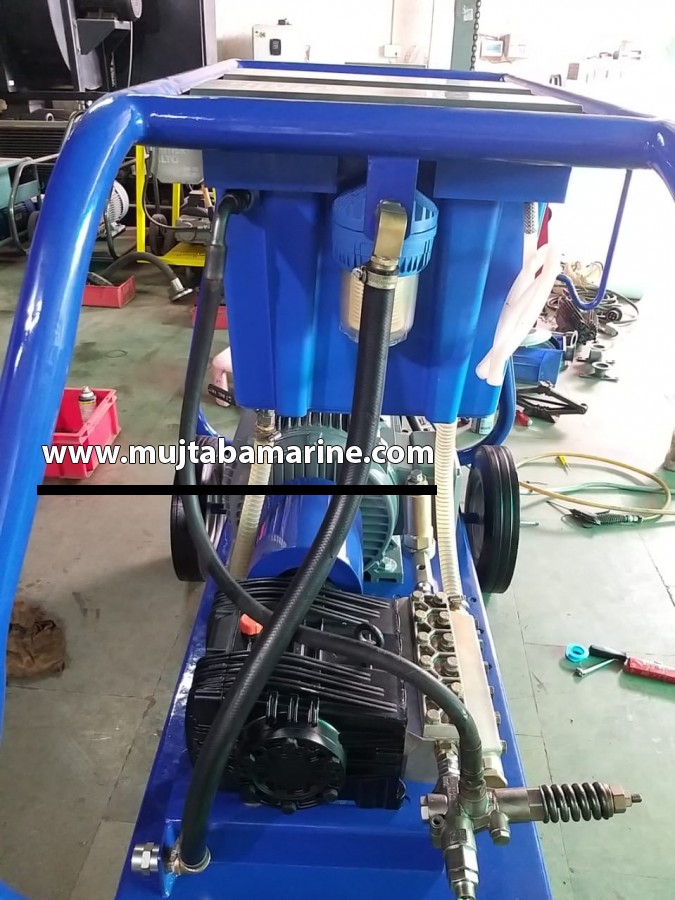

Features & Benefits:
Solid Galvanized & powder coated frame
Non-corrosive material used in pumps and fittings

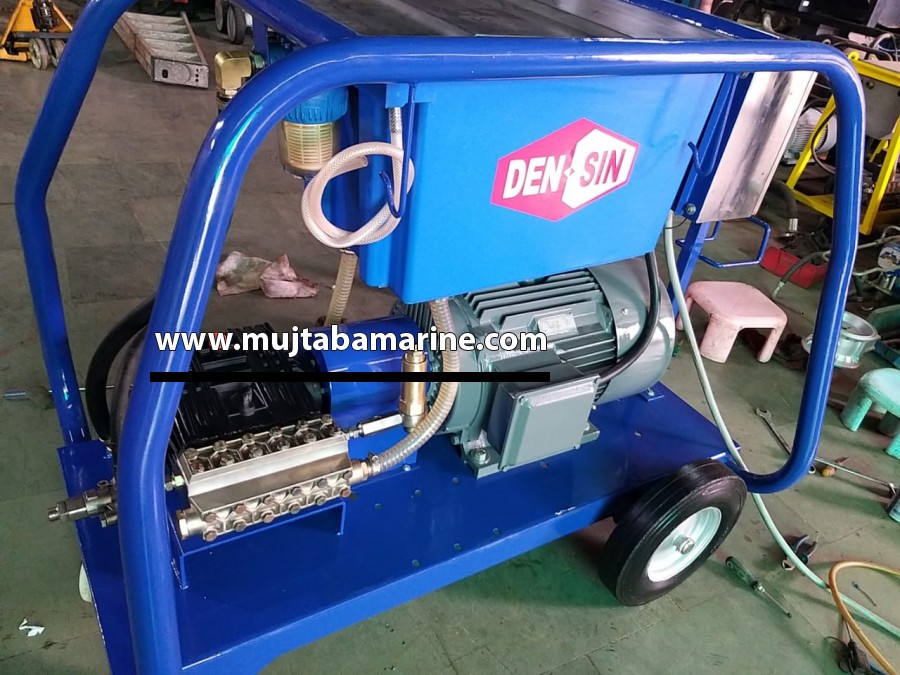

Unique pump design quintuple (5) ceramic plungers ensuring smooth pulsation free flow
Stainless steel pump head
Built in stainless Unloader/safety valve

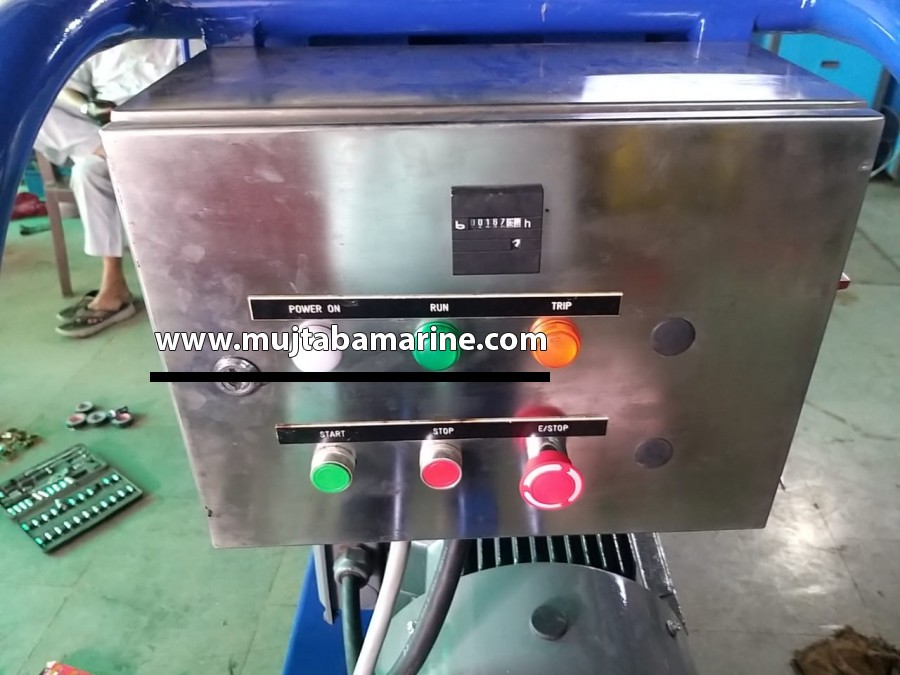

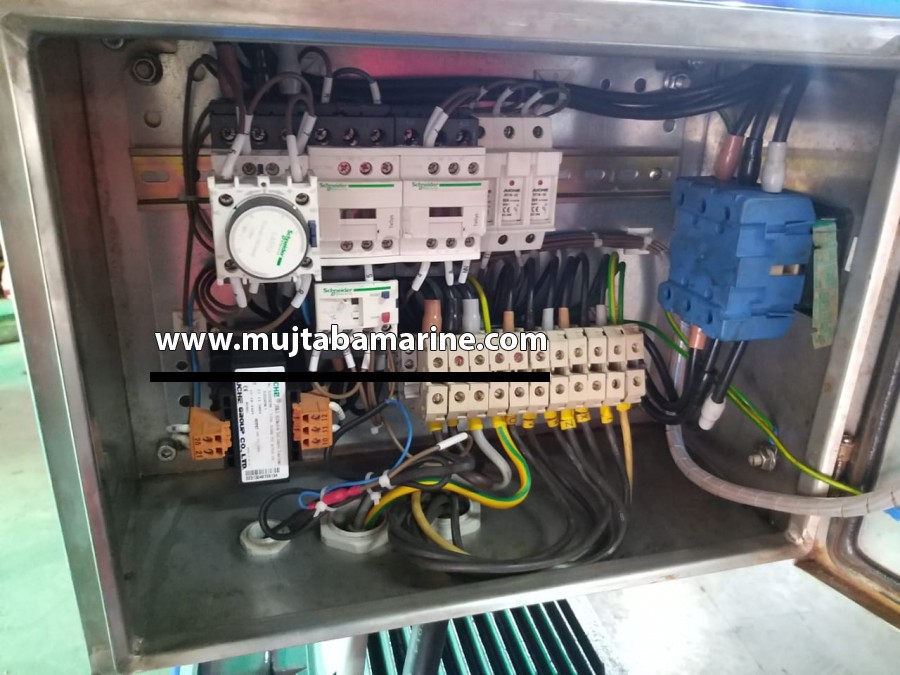

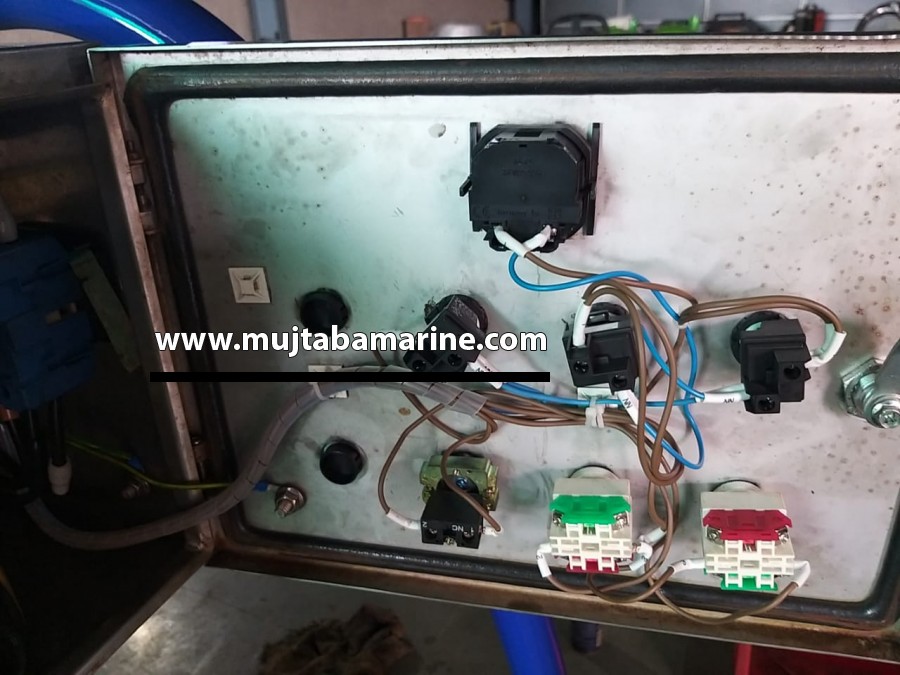

Weather proof star/delta starter box
Powerful 40HP Motor with overload relay, IP55 classification, Class F insulation and continuous running duty
Low water level cut off switch
80L heavy duty water tank with filter and inlet float valve

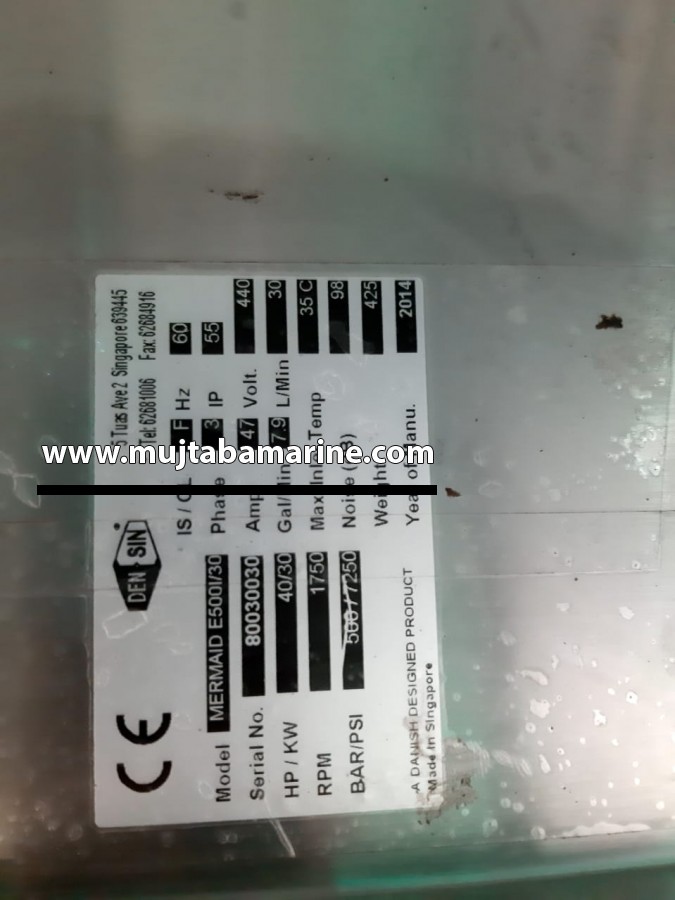

| Technical Specs |
Unit |
Mermaid E-500/30 |
| Pressure |
Bar/psi |
500/7250 |
| Flow |
L/Min / USgpm |
30/7.9 |
| Power Consumption |
Kw/Hp |
30/40 |
| Power Supply |
V |
440/3ph 60Hz |
| Motor Spec |
Rpm |
1750 |
| Weight |
Kg |
440 |
| Dimensions LxWxH |
mm |
1495x980x1263 |
| IMPA Code |
Number |
590871 |
